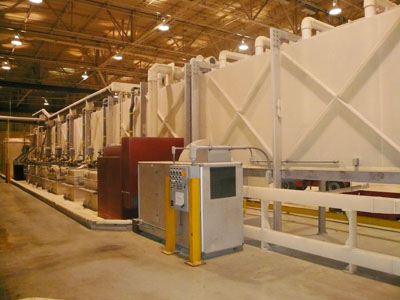

For Sale: 6 Stage Poly Washer

6 Stages . . .

Tank One
19 ft 11 in • Deox Rinse • 3300 Gallon Capacity • Heated Electric
Spray Zone: 12 ft 0 in

Tank Two
6 ft 6-½ in • Rinse • 1080 Gallon Capacity • Heated Electric
Spray Zone: 3 ft

Tank Three
6 ft 6-1/2in • Rinse • 1080 Gallon Capacity • Heated Electric
Spray Zone: 3 ft

Tank Four
6 ft 6-1/2in • Alodine 1080 Gallon Capacity • Heated Electric
Spray Zone: 3 ft

Tank Five
4 ft 7 in • Rinse • 750 Gallon Capacity
Spray Zone: 3 ft

Tank Six
4 ft 7 in • Rinse • 750 Gallon Capacity

Additional Features . . .

• Bex Clipon NOZZLES 6 gpm
• Tank and Upper Housing Polypropylene
• External Structrural Stainless Steel

• Part Opening Approximate: 2 ft W x 6 ft H
• Overall Height With Housing 13 ft 8 ½ in
• Overall Length Washer 78 ft 10 in

• High Pressure Blowoff

• Heated Dryer 18 ft 0 in

• Unibilt Conveyor Loop 16 ft 4 in
• Complete With Drive Takeup Turns, 283 Chain

• Three Holding Tanks Each 3650 Gallon Capacity

• Overall Length of All 171 ft

• Three Holding Tanks 3750 Gal Each

• Fume Scrubber Stage One

• Complete Catwalk Assembly Along Whole Line

PRICED F.O.B. NOVE (NEAR DETROIT), MI

NOTE: This washer new was over $700,000.
It is a prototype washer and was never used for production.

Prints Available.



Click here if interested in a used 2-stage composite washer

Or email us to request other needed equipment.
